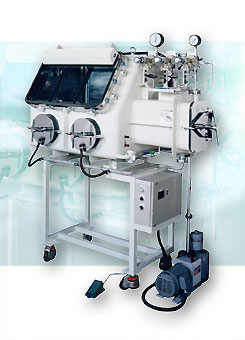

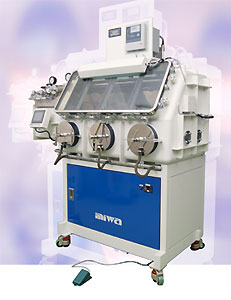

Vacuum Glove Box Systems
DESCRIPTION: The vacuum glove box system can be used for handling(i) a solid, powder, or a liquid which is unstable in the air, (ii) a radioactive substance and (iii) a very toxic substance. After forcibly evacuated in a short period of time by a vacuum pump, the system inside is hermetically filled with predetermined inert gas (N2, Ar, He, dry air or the like) up to a normal pressure. Operations can be executed through the gloves. A specimen is put in and out through the antechamber. The attachment of a gas recycling purification system makes it possible to maintain the system inside at a highly pure inert gas atmosphere for a long period of time.
Features:
- Both the main body and the antechamber can be evacuated, resulting in rapid gas exchange and high reliability.
- The sight window is large and the window glass can readily be attached and removed, enabling a specimen to be put in and out through the sight window.
- At the side of the main body, the antechamber has a sliding door, enabling the main body inside to be effectively utilized.
- The antechamber has a slide table, enabling a specimen to be readily put in and out.
- The pressure in the main body can be maintained constant by an automatic inner pressure regulator (optional).
- When a special glove port (patent pending) is used, a damaged glove can be exchanged without the glove box inside atmosphere injured (optional).
SPECIFICATION: Vacuum degrees :
- Main body : 13.3 Pa (1 x 10^-1 Torr) or less
- Antechamber : 6.65 Pa (5 x 10^-2 Torr) or less
Sight window : Hardened reinforced glass
Inside finish : Buff finish (standard), Pickling
Main body inside electrical outlet : AC 100V 15A Two ports
Automatic inner pressure regulator : Equipped with a foot switch (optional)
Illumination fluorescent lamp : 20 W
Gloves : Butyl (standard), Fluororubber, Neoprene
Sight window safety cover : Polycarbonate (optional)
URL: www.miwass.co.jp/english/e_html/e_vgb.html
|
|
 |
No video available
| Other Porducts from Miwa Mfg. Co., Ltd |
|
Vacuum Glove Box Systems
Description:
The vacuum glove box system can be used for handling(i) a solid, powder, or a liquid which is unstable in the air, (ii) a radioactive substance and (i...
|
|
|
Gas Recycling Purification Systems
Description:
This gas recycling purification system is designed to recycle and purify both the inert gas in the glove box and moisture, oxygen, an organic solvent,...
|
|
|

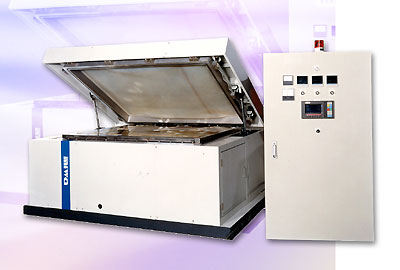

Laminating Machine
